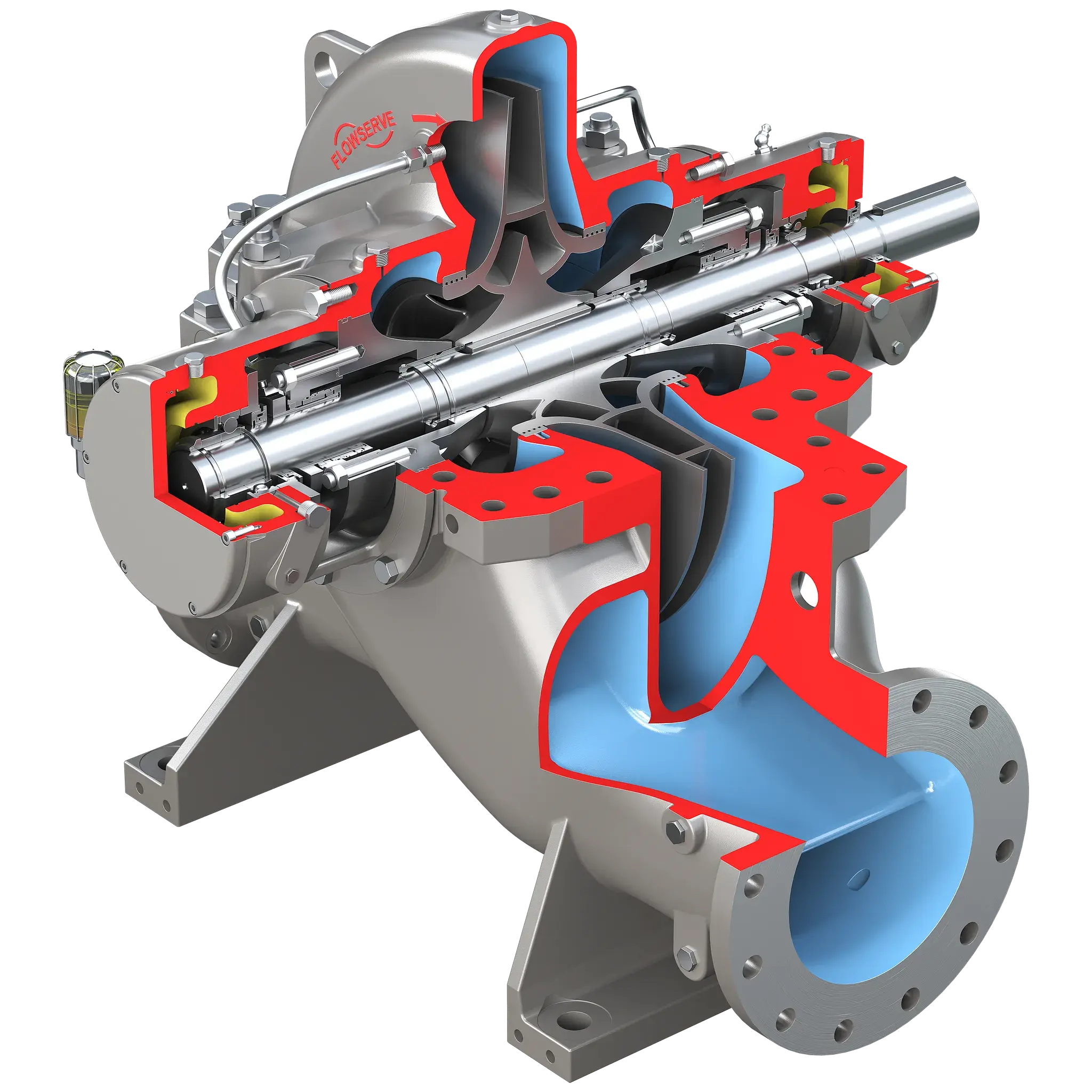

Worthington® LNN Between Bearings Pump - Axially Split, Single Case

Worthington® LNN Between Bearings Pump - Axially Split, Single Case

Product Brand

Worthington®



Type

Between Bearings Pumps



SubType

Single Case Pumps - Axially Split



About this product

The LNN series of pumps is the outcome of many years of experience in the design and manufacture of axially split casing pumps. State-of-the-art pump design technology from Flowserve has resulted in superior pump designs which offer broad hydraulic coverage, quiet operation, low NPSH requirements, high operating efficiency and low total cost of ownership.





Features and Benefits

  • Double volute design minimizes hydraulic radial forces in any condition down to the minimum flow, thereby reducing shaft deflection and increasing the service life of bearings, seals and wear rings

  • Separate 360° bearing housings provide superior bearing stability and shaft support while easing maintenance

  • Perfect shaft alignment is assured by a full register fit to the casing

  • Axially split casing with suction and discharge nozzles integrally cast in the lower casing half permits pump disassembly without disturbing the piping or driver

  • Upper casing half does not have to be removed to access bearings, packing, mechanical seals, sleeves or sleeve nuts

  • Nozzle flanges meet the dimensional requirements of ASME B16.1, B16.5 or ISO 7005 part 1 or 2

  • Flanges are available in sizes from Class 125 to Class 300 (ISO PN10 to PN63)



Specifications

  • Flowserve

  • ISO 13709 / API 610

  • Flows to 30,000 m3/h (132,000 gpm)

  • Heads to 300 m (985 ft)

  • Pressures to 40 bar (580 psi)

  • Temperatures from -30°C (-20°F) to 140°C (285°F)

Size Range: Sizes from 125 mm (5 in) to 1200 mm (48 in)



Configurations

LNNV Vertical mounted, side suction

LNNC Horizontal mounting with bottom suction and side discharge

LN Horizontal mounted, side suction

LNH Horizontal mounted, side suction

LNST Horizontal mounted, side suction

LNE Horizontal mounted, side suction

LNS Horizontal mounted, side suction

LNGT Horizontal mounted, side suction

LNEC Horizontal mounting with bottom suction and side discharge

LNC Horizontal mounting with bottom suction and side discharge

LNEC Horizontal mounting with bottom suction and side discharge

LNSC Horizontal mounting with bottom suction and side discharge

LNEV Vertical mounted, side suction

LNV Vertical mounted, side suction



Industries

Power

  • Conventional Steam

Chemicals

  • Petrochemicals

Mining

Water

  • Water Management

  • Wastewater

  • Agriculture & Irrigation

  • Flood Control System

  • Desalination

Oil & Gas

  • Midstream Transportation

  • Downstream Processing

General Industries

  • Pulp & Paper

  • Steel & Primary Metals

  • Food & Beverage

  • Other Industries
