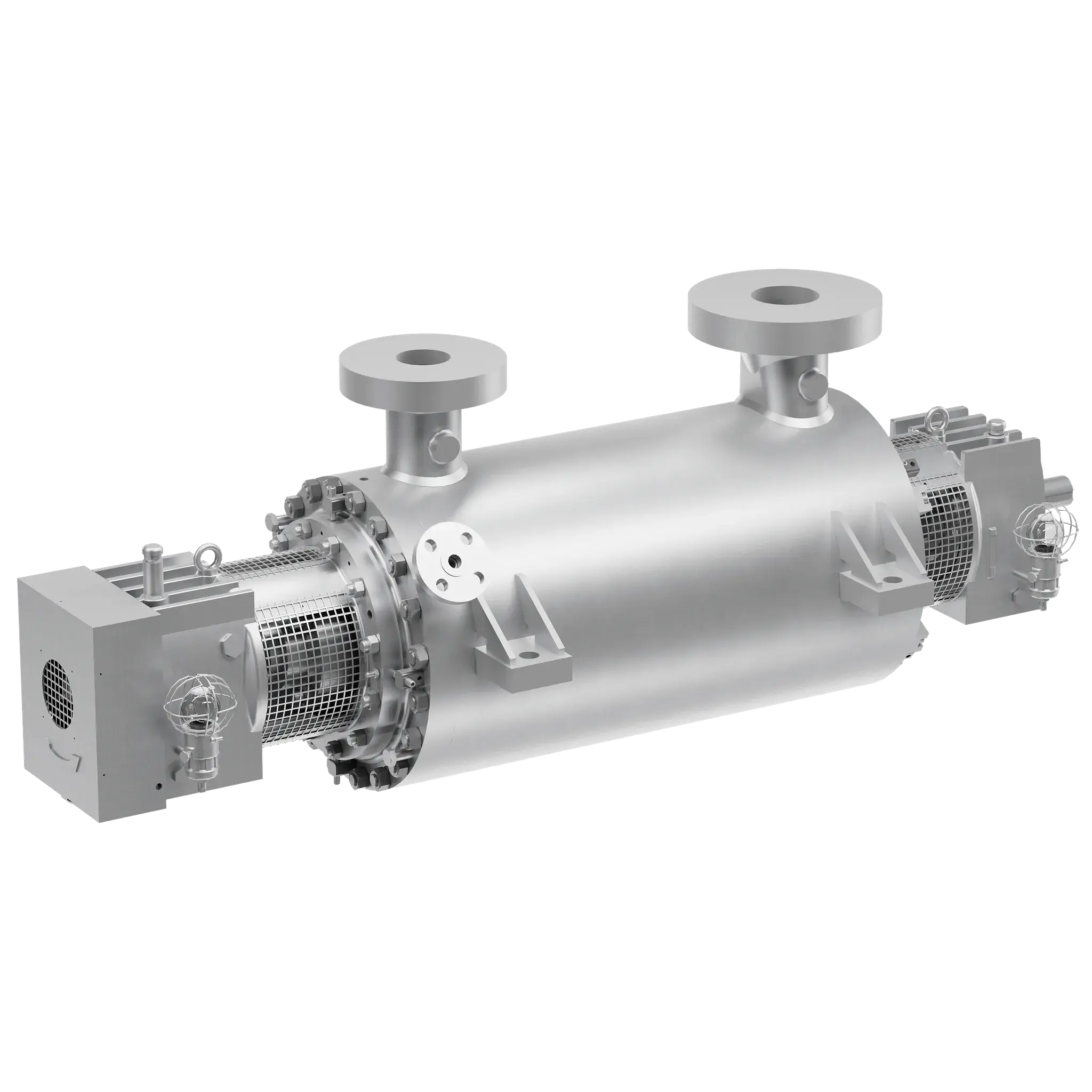

Flowserve WXB/WXBB Between Bearings Pump - Horizontal, Multistage, Double Case

Flowserve WXB/WXBB Between Bearings Pump - Horizontal, Multistage, Double Case

Product Brand

Flowserve



Type

Between Bearings Pumps



SubType

Horizontal - Multistage - Double Case



About this product

The WXB is a multistage, diffuser-casing barrel pump with tandem impellers and a balance drum to carry axial thrust forces. It is designed for users who need the hydraulic range and performance of a ring section pump, but demand the design and maintenance attributes of a barrel pump. An extension of the well-proven WXB, the WXBB is an API 610-style, multistage barrel pump which incorporates Barske style impellers to produce stable low-flow performance. It is a reliable, direct drive solution for low-flow, high-head applications.





Features and Benefits

Designed to meet the intent of API 610, latest edition the WXB pump is a BB5 category, double case horizontal, multistage, centerline mounted barrel pump.

The compact, space-saving design has a convenient cartridge-style construction to minimize maintenance down time. The WXB is field proven in oil refineries and petrochemical plants throughout the world and first choice for medium demanding applications - in all services where process conditions demand a barrel construction, process industry, refineries, chemical and petrochemical plants, liquefied gas stations, condensate service and boiler feed service.

A full range of sizes from 2” to 6” combined with a wide range of hydraulics, numbers of stages and all API material columns allows the WXB to be applied across the complete breadth of the market. An on-going research and development program guarantees an up-to-date product, constantly evolving to meet the latest standards API 682  mechanical seal chambers, ASME, ATEX, CE marking etc.

The WXBB pump is a horizontal, double case, diffuser collector, multistage, centerline mounted between bearing pump designed to meet API 610 latest edition requirements. The inner element is constructed as a two piece channel ring/diffuser stage and Barske impellers mounted in-line (tandem), utilizing a straight balance drum at the discharge side to balance residual thrust.

The hydraulics are specifically developed for stable performance in low flow high head applications.



Specifications

  • Flowserve

  • Hydraulic Institute

  • API 610

  • API 682 seal chamber and seal flush plans

  • ASME, ATEX, PED

WXB

  • Flows to 300 m3/h (1320 gpm)

  • Head to 1200 m (3940 ft)

  • Pressure to 150 bar (2175 psi) as standard; to 200 bar (2900 psi) on back-to-back configuration

  • Temperature from -75°C (-103°F) to 300°C (572°F)

WXBB

  • Flows from 4.5 m3/h (20 gpm) to 35 m3/h (154 gpm)

  • Heads to 1560 m (5116 ft)

  • Pressure to 200 bar (2900 psi)

  • Temperature from -46°C (-51°F) to 200°C (392°F)

Size Ranges

WXB

  • 4 frame sizes

  • 13 hydraulics

  • Up to 16 stages

WXBB

  • 1 size

  • 8 hydraulic designs

  • Up to 8 stages



Configurations

Flowserve Horizontal - Multistage - Double Case - WXB / WXBB

Worthington Horizontal - Multistage - Double Case - WXB / WXBB



Industries

Power

  • Conventional Steam

  • Combined Cycle

Chemicals

  • Basic (Organic & Inorganic)

  • Specialty (Fine & Consumer)

  • Biofuels

  • Petrochemicals

Oil & Gas

  • Upstream Exploration & Production

  • Midstream Transportation

  • Downstream Processing

General Industries

  • Other Industries
