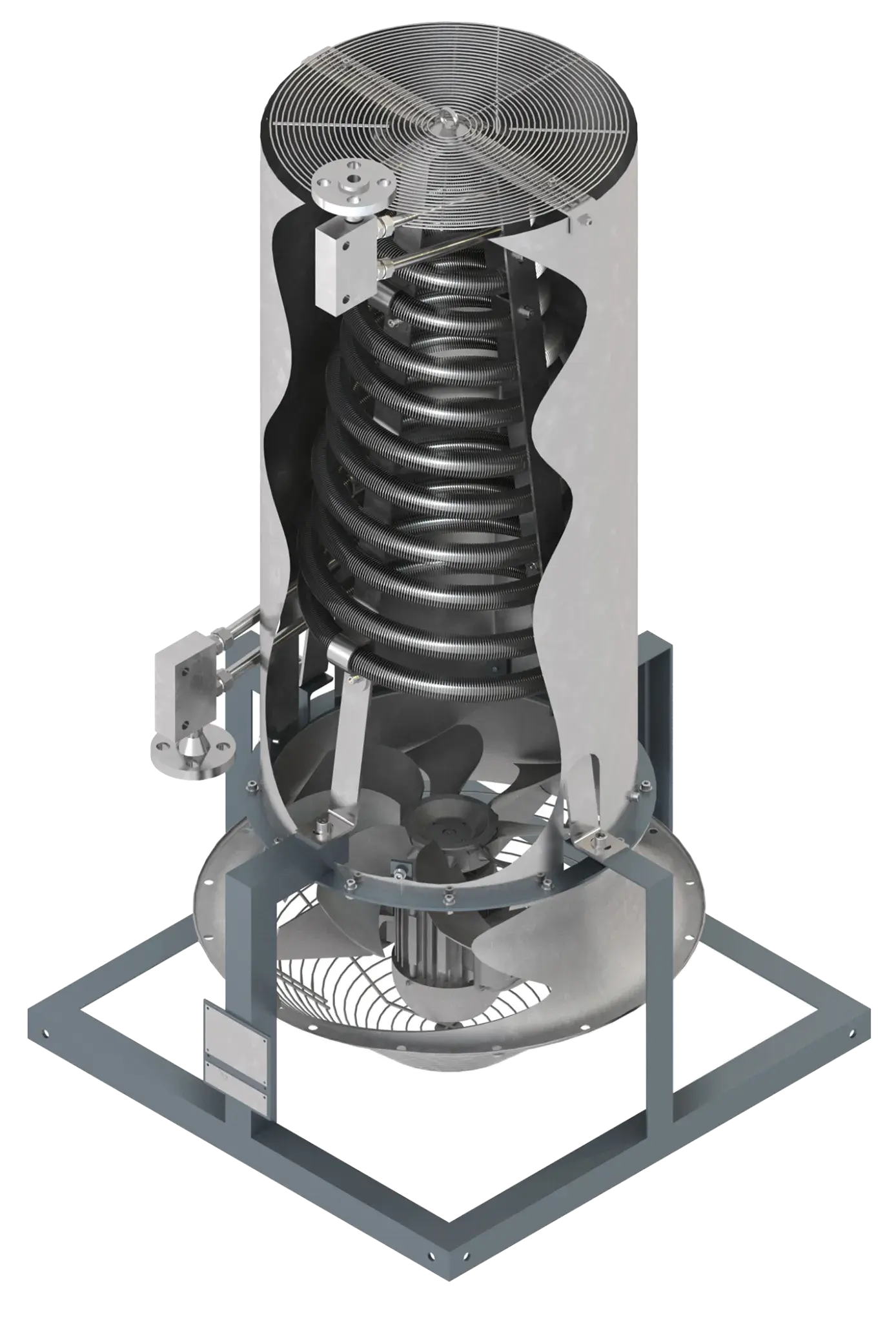

Flowserve Airfin AFC Seal Cooler

Product Brand

Flowserve

Type

Seal Systems

SubType

Seal Coolers - Airfin

About this product

The AFC Seal Cooler is a forced draft system that increases performance of finned pipe designs by boosting airflow across the cooling coil. It increases mechanical seal reliability by removing heat and reducing fluid temperature without cooling water.The AFC Seal Cooler can be applied to multiple seal support systems, including piping plans 21, 23, 53B and 53C.

Features and Benefits

Unique conical design optimizes heat transfer
Fully compliant with API 682 4th Edition with large tube size to maximize flow
Designed to ASME B31.3 process piping standards
Corrosion-resistant materials used throughout; suitable for marine environments
Minimize operating and maintenance costs by eliminating the need for cooling water
Compact design simplifies installation and maintenance, including easy cleaning, venting and draining
Robust welded fins can be cleaned with power washers
Optional certifications available: –ATEX assembly with PED –ATEX motor (only) –NEC/CSA explosion-proof moto

Specifications

API 682 4th Edition ASME B31.3 ATEX PED NEC/CSA

Maximum Pressure: 200 bar (2,900 psig) @ 371C (700F) Maximum Temperature: 371C (700F)

Material:

Corrosion-resistant materials used throughout; suitable for marine environments

Industries

Oil & Gas

Midstream Transportation
Downstream Processing

General Industries

Other Industries
